MSI Pro Z690A WIFI DDR5 Motherboard

MSI Pro Z690A WIFI DDR5 Motherboard

The MSI Pro Z690-A WIFI DDR5 Motherboard is designed for professionals, creators, and gamers seeking cutting-edge technology and performance. Powered by the Intel Z690 chipset, this ATX motherboard supports 12th and 13th Gen Intel Core™ processors with the LGA 1700 socket, delivering unmatched speed and reliability for modern computing needs.

With support for DDR5 memory, the Pro Z690-A WIFI provides a leap in performance and efficiency, accommodating up to 128GB of RAM at speeds up to 6400 MHz (OC). This ensures smoother multitasking, faster data processing, and seamless gaming or creative workflows. The PCIe 5.0 slot offers maximum bandwidth for next-gen GPUs, while four M.2 slots with PCIe 4.0 support deliver blazing-fast storage speeds for NVMe SSDs.

Connectivity is future-proofed with built-in WiFi 6E and 2.5GbE LAN for high-speed networking and Bluetooth 5.2 for wireless peripherals. A wide array of USB ports, including USB 3.2 Gen 2×2 Type-C, ensures compatibility with modern devices and fast data transfers.

Thermal performance is enhanced with extended heatsinks, M.2 Shield Frozr, and superior thermal pads to maintain stability under heavy workloads. MSI-exclusive features like Core Boost, Audio Boost 5, and a user-friendly Click BIOS 5 interface make system optimization intuitive and efficient.

Key Features

• Intel Z690 Chipset: Supports 12th and 13th Gen Intel Core™ processors.
• DDR5 Memory: Up to 128GB, speeds up to 6400 MHz (OC).
• PCIe 5.0 Slot: Optimized for next-gen GPUs.
• WiFi 6E & 2.5GbE LAN: Seamless high-speed networking.
• Four M.2 Slots: Ultra-fast NVMe storage support.
• Enhanced Cooling: Extended heatsinks and M.2 Shield Frozr.
• Audio Boost 5: Premium sound quality.
• USB 3.2 Gen 2×2 Type-C: Fast and versatile connectivity.

Technical Specifications

• Form Factor: ATX
• Chipset: Intel Z690
• Socket: LGA 1700
• CPU Support: 12th and 13th Gen Intel Core™ processors
• Memory: 4 x DDR5 DIMM slots, up to 128GB, speeds up to 6400 MHz (OC)
• Graphics Interface: 1 x PCIe 5.0 x16, 3 x PCIe 3.0 x1
• Storage: 4 x M.2 slots, 6 x SATA 6Gb/s ports
• Networking: WiFi 6E, Bluetooth 5.2, 2.5GbE LAN

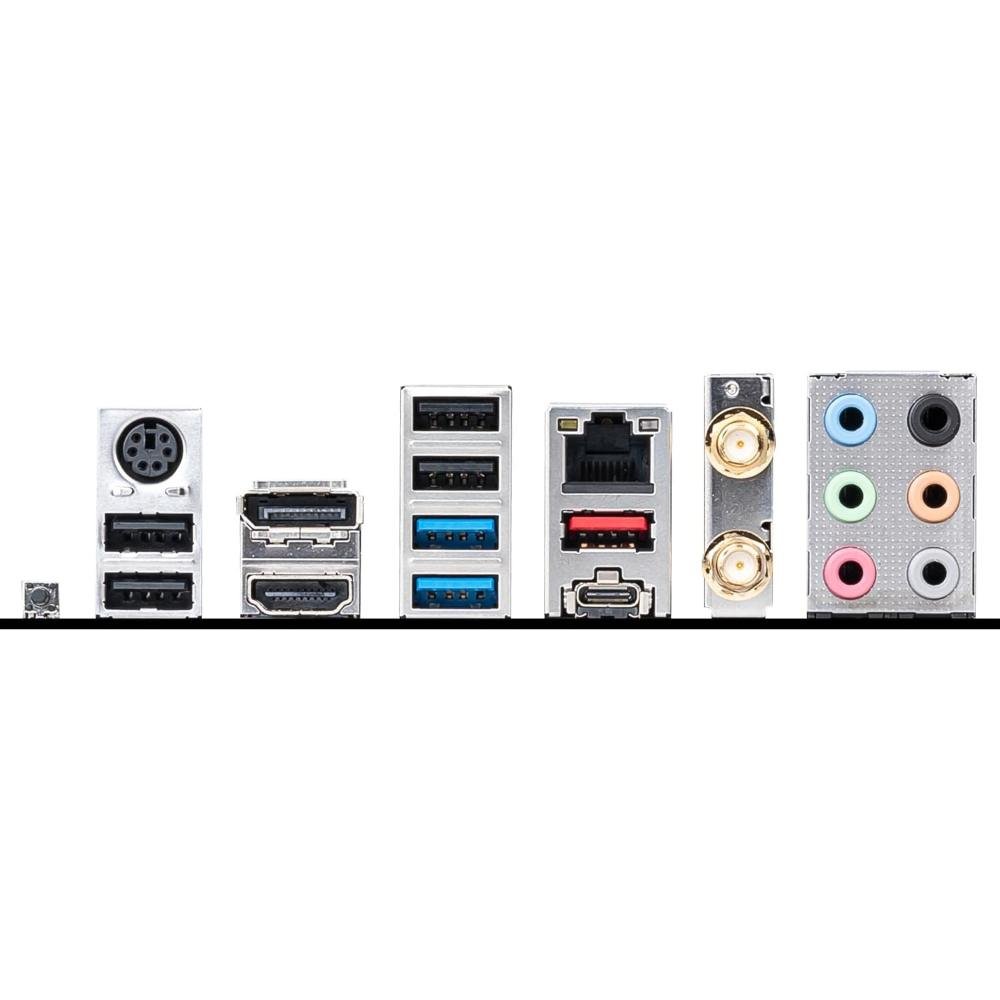

• USB Ports: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 1, USB 2.0
• Audio: Realtek ALC897 codec, Audio Boost 5
• BIOS: Click BIOS 5 with advanced configuration options
• Warranty: 3 Year Brand Warranty
• NOTE:  Features, Price, Specifications are subject to change without notice.
